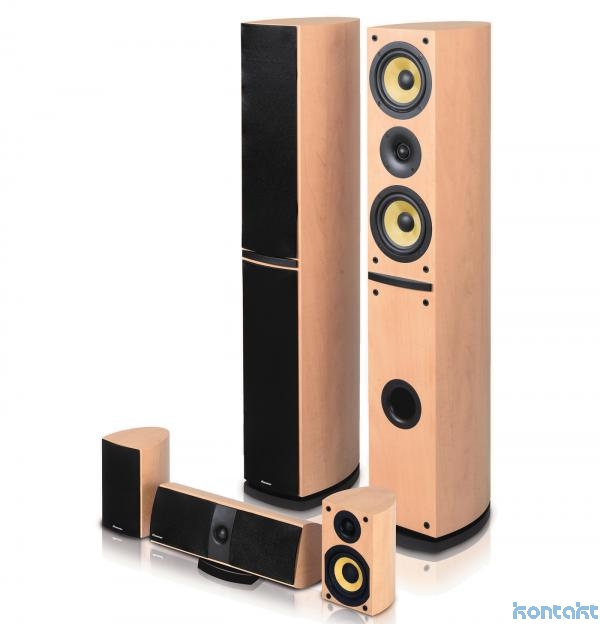

Pioneer S-V520QL +SW +SBR&L

Sistem 7.1 sestavljajo estetski in močni zvočniki s-v520-ql, s-f52-ql in sub s-w150s. Vsi so iste serije!


POVEZAVE:
subwoofer:
www.pioneer.eu/eur/products/archive/S-W150S/index.html


BIG TOWER zvočniki (L&R) 2x:
Woofer 2 x 14cm cone woofers
Tweeter 2.5cm dome-type unit
Enclosure Front duct bass-reflex
Frequency Range 40 - 20, 000 Hz
Sensitivity (2.83V/1m) 87 dB
Power Handling 130W
Dimensions (W x H x D) 195 x 1, 032 x 289 mm
Weight 13.4 kg


CENTER zvočnik (CENTER) 1x:
Woofer 2 x 10cm cone woofer
Tweeter 2.5cm dome tweeter
Frequency Range 70 - 20.000 Hz
Sensitivity (2.83V/1m) 86 dB
Power Handling 130W
Dimensions (W x H x D) 381 x 145 x 153 mm
Weight 3.4 kg


SMALL zvočnik (SL&SR in SBL&SBR) 4x:
Woofer 10cm cone woofer
Tweeter 2.5cm dome tweeter
Frequency Range 80 - 20, 000 Hz
Sensitivity (2.83V/1m) 84 dB
Power Handling 130W
Dimensions (W x H x D) 130 x 203 x 153 mm
Weight 1.9 kg


SUBWOOFER (SUB) 1x:
150 W RMS active Power
Maximum power Subwoofer 150 W
Magnetically shielded for video use Yes
Subwoofer module S-W150S
Subwoofer module 22 cm Cone woofer
Built-in Amplifier Yes
Stereo (Screw Terminal) Yes
Mono (Pin Jack) Yes
Speaker level Input Sensitivity/Impedance (100 Hz) 2, 0 V + 2, 0 V / 15 k Ohm
Line level (RCA Jack) Input Sensitivity/Impedance (100 Hz) 200 mV / 50 k Ohm
Power Consumption 300 W
Power Requirements AC 220 - 230 V, 50 - 60 Hz
Specifications S-W150S
Subwoofer frequency range 30 - 200 Hz
Subwoofer dimensions (WxHxD) 280 x 480 x 495 mm
Subwoofer weight 19, 70 kg
